Asynchronous Backing Guide for Synochains

For upgrading a synochain for Asynchronous Backing compatibility, follow the instructions on this Wiki document.

Learn about Synochain Consensus

To fully follow the material on this page, it is recommended to be familiar with the primary stages of the Synochain Protocol.

In Bitzal, synoblocks are generated by collators on the synochain side and sent to validators on the relay chain side for backing.

What is backing?

Backing refers to the process in which synoblocks are verified by a subset of validators or backing groups. It is an important step in the validation process for synoblocks, as it is the first line of defense in ensuring censorship resistance. Synoblocks only need to be backed by one validator, and as a consequence, backing does not ensure synoblock validity.

Backed synoblocks are sent to other validators for inclusion into the relay chain. Synoblocks are included when validators have attested to having received erasure coded chunks of the synoblock data. Note candidate receipts and not the synoblocks themselves are included in relay blocks (but for simplicity, we refer to synoblocks as being included). When generated, synoblocks must be anchored to a relay chain block called relay parent. The relay parent is an input to synoblock candidate generation. It provides the necessary context to build the next synoblock. Note that the relay parent of a synoblock and the relay block including that synoblock are always different.

Synchronous Backing​

Before diving into asynchronous backing, it is important to understand what synchronous backing is and its main limitations. In synchronous backing, synoblock generation is tightly coupled to the relay chain's progression:

  1. A new synoblock can be produced after including the previous one (i.e., every 12 seconds).
  2. Context to build the next synoblock is drawn from the latest included synoblock ancestor
  3. The relay parent must be the latest relay chain block.

Because of (1) synoblocks can be generated every other relay chain block (i.e., every 12 seconds). Because of (2) generation of synoblock P can only start when P - 1 is included (there is no pipelining). Because of (3) execution time can take maximum 0.5 seconds as synoblock P is rushing to be backed in the next 5.5 seconds (2 seconds needed for backing and the rest for gossiping). Every synoblock is backed in 6 seconds (one relay chain block) and included in the next 6 seconds (next relay chain block). The time from generation to inclusion is 12 seconds. This limits the amount of data a collator can add to each synoblock.

Synoblock generation will choose the most recently received relay block as a relay parent, although with an imperfect network that may differ from the true most recent relay block. So, in general, if relay block R is the relay parent of synoblock P, then P could be backed in R + 1 and included in R + 2.

sync-backing

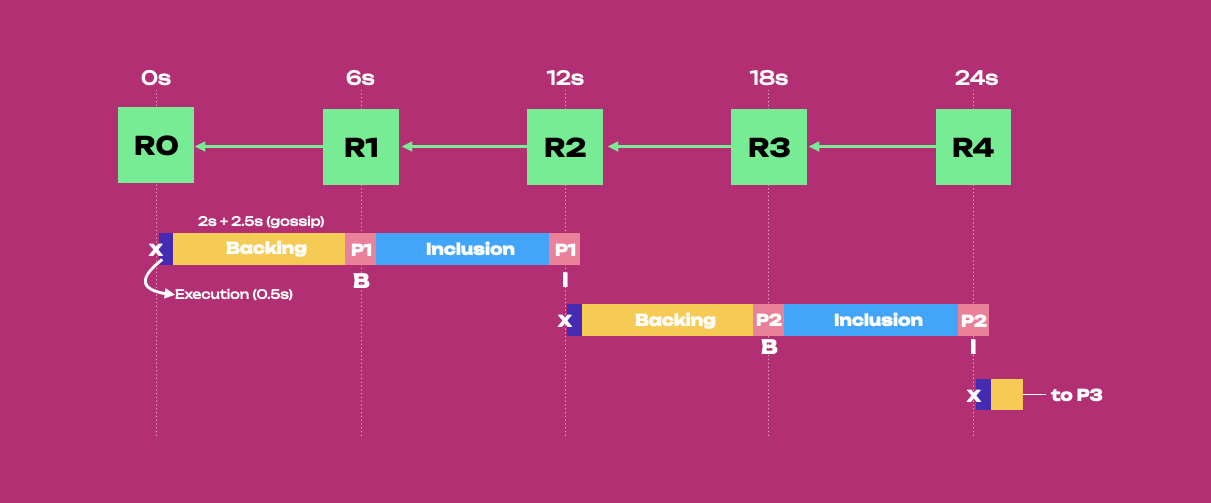

From left to right, synoblock P1 is anchored to the relay parent R0 (showed with an x), backed into the relay chain block R1, and included in R2. After including P1, collators can start generating P2 that must be anchored to the relay parent R2. Note that R2 will be the relay parent of P2 if R2 is included on the relay chain and gossiped to the collator producing P2.

Every collator also runs an attached relay chain full node

The attached relay node receives relay blocks via gossip. Then, the relay node talks to the synochain node through the CollationGeneration subsystem. R2 is gossiped to the relay full node attached to the collator producing P2. Then, CollationGeneration passes information about R2 to the collator node. Finally, relay parent information from R2 informs the generation of candidate P2.

Because P2 is rushing to be backed in 6 seconds into R3, validators have only 0.5 seconds for execution. Backing groups will take approximately 2 seconds to back it and some extra time for gossiping it (the whole process from collation to backing lasts 6 seconds). P2 is included in R4, which could be used as a relay parent for P3 (not shown). After 24 seconds P1 and P2 are included in the relay chain. Note how collators can start new synoblocks every 12 seconds but only have 0.5 seconds for execution.

Asynchronous Backing​

Disclaimer: Performance Measurements

Due to asynchronous backing not being fully implemented in a running production network, each performance metric is not thoroughly tested nor guaranteed until proper benchmarking has occurred.

sync-vs-async-backing

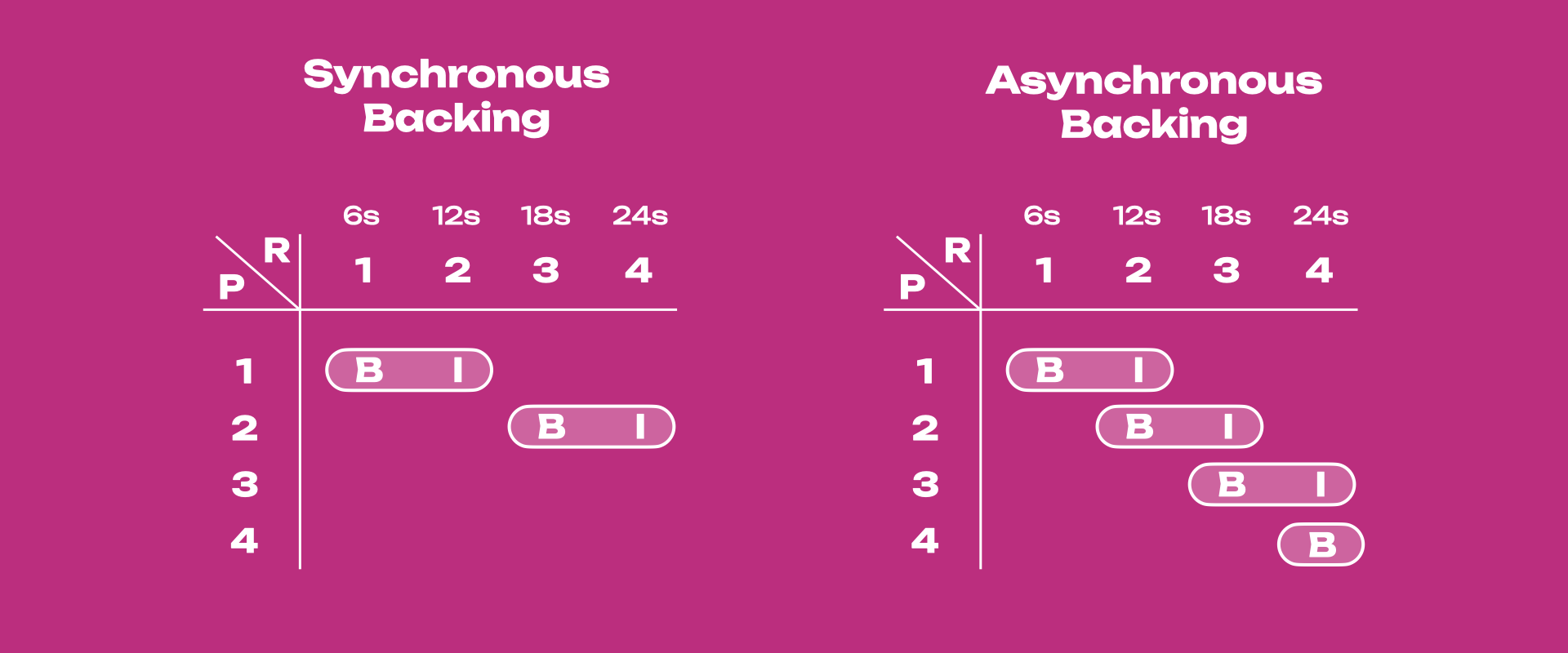

In asynchronous backing, synoblocks (P) are included every 6 seconds, and backing (B) and inclusion (I) can happen within the same relay chain block (R).

Synchronous vs. Asynchronous Backing​

Below is a table showing the main differences between synchronous and asynchronous backing.

Sync BackingAsync BackingAsync Backing Advantage
Synoblocks included every12 seconds6 seconds2x more throughput or 2x less latency
Synoblock's maximum execution time0.5 seconds2 seconds4x more data in a synoblock
Relay parentIs the latest relay chain blockIs not necessarily the latest relay chain blockAssators can submit synoblocks to backing groups in advance
Assators can build onThe most recent ancestor included in the latest relay chain blockAn ancestor included in a relay chain block (not necessarily the latest), with augmented information from the latest ancestor in the unincluded segmentAssators can start building synoblocks in advance
Number of unincluded synoblocksOnly oneOne, or more than one (depends on configuration parameters)More efficiency and scalability
Unincluded synoblocksCannot be re-proposedCan be re-proposed if not successfully included in the first attemptDecrease wastage of unused blockspace
Synoblock's Backing-to-inclusion time12 seconds12 secondsNo change
Synoblock's Inclusion-to-finality time30 seconds30 secondsNo change

In synchronous backing, collators generate synoblocks using context entirely pulled from the relay chain. While in asynchronous backing, collators use additional context from the unincluded segment. Synoblocks are included every 6 seconds because backing of synoblock N + 1 and inclusion of synoblock N can happen on the same relay chain bock (pipelining). However, as for synchronous backing, a synoblock takes 12 seconds to get backed and included, and from inclusion to finality there is an additional 30-second time window.

Because the throughput is increased by 2x and synochains have 4x more execution time, asynchronous backing is expected to deliver 8x more blockspace to synochains.

Sync Backing as a special case of Async Backing​

Two parameters of asynchronous backing can be controlled by Governance:

  • max_candidate_depth: the number of synochain blocks a collator can produce that are not yet included in the relay chain.

  • allowed_ancestry_len: the oldest relay chain parent a synochain block can be built on top of.

Values of zero for both correspond to synchronous backing: max_candidate_depth = 0 means there can be only one unincluded synoblock at all times, and allowed_ancestry_len = 0 means a synoblock can be built only on the latest relay parent for that synochain. Initial values will be set to 3 (4 unincluded synoblocks at all times) and 2 (relay parent can be the third last).

Async Backing Diagram​

async-backing

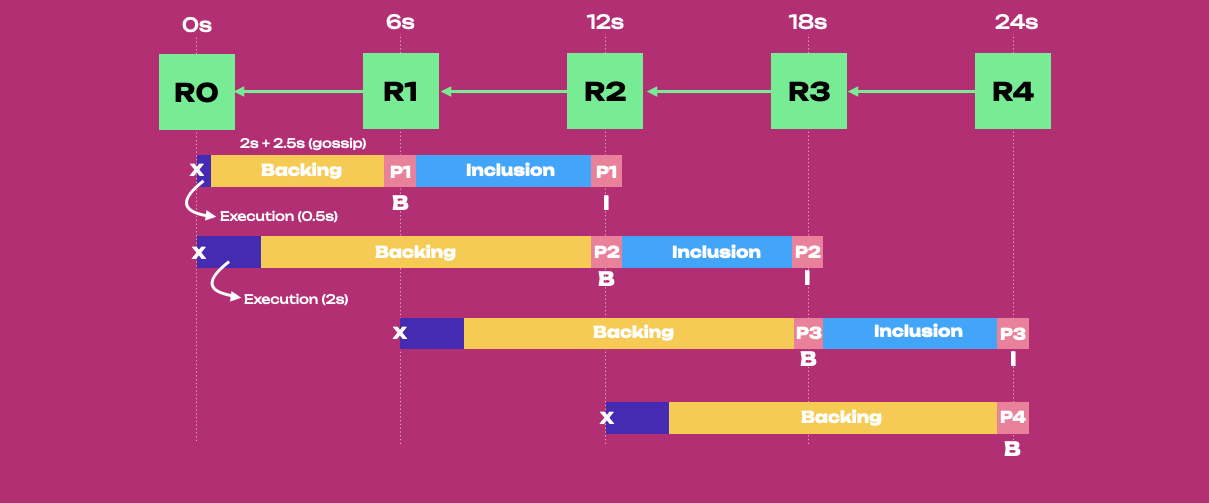

The diagram assumes:

  • max_candidate_depth = 2, meaning that there can be a maximum of three unincluded synoblocks at all times
  • allowed_ancestry_len = 1, meaning synoblocks can be anchored to the last or second-last relay parent (i.e., collators can start preparing synoblocks 6 seconds in advance)

From left to right, synoblock P1 is backed into the relay chain block R1 and included in R2. While P1 undergoes backing, collators can already generate P2, which will have R0 as a relay parent (showed with an x). Note how R0 can also be relay parent for P1 as long as in the unincluded segment there is a maximum of three unincluded synoblocks. Synoblock P2 can be backed in R2 (the same relay block where P1 is included) and included in R3. Assators can now use up to two seconds for execution. And so on, P3 can be generated while backing groups check P2, and P4 can be built while P3 undergoing backing. In 24 seconds, P1 to P3 are included in the relay chain.

Note how there are always three unincluded synoblocks at all times, i.e. compared to synchronous backing there can be multiple unincluded synoblocks (i.e. pipelining). For example, when P1 is undergoing inclusion, P2 and P3 are undergoing backing. Assators were able to generate multiple unincluded synoblocks because on their end they have the unincluded segment, a local storage of not-included synoblock ancestors that they can use to fetch information to build new synoblocks. On the relay chain side, perspective synochains repeats the work each unincluded segment does in tracking candidates (as validators cannot trust the record kept on synochains).

The 6-second relay chain block delay includes a backing execution timeout (2 seconds) and some time for network latency (the time it takes to gossip messages across the entire network). The limit collators have to generate synoblocks is how long it takes to back it (i.e., 2 seconds). Collation generation conservatively always gives itself the same time limits. If there is extra time for collation generation and backing (i.e., more than 2s + 6s), then all that extra time is allocated to backing (see figure). This could result in backable blocks waiting their turn at the end of the backing step for a few extra seconds until a core frees up to back that block as of the next relay block or some later relay block. Note a core is occupied after backing and before inclusion.

The 2-second execution time is thus a limiter, not a system limitation. If synoblock generation takes >2 seconds, the unincluded segment will shrink (less unincluded synoblocks), while if it takes < 2 seconds, the segment will grow (more unincluded synoblocks that will need to be backed and included). Such flexibility from the synochain side will be possible when, on the relay chain side, there will be elastic scaling (i.e., agile core usage and coretime allocation).

Terminology​

Candidate Receipt​

Saying that a synoblock has been included in a relay chain parent does not mean the entire synoblock is in the relay chain block. Instead, candidate receipt consisting of the hash of the synoblock, state roots, and ID info is placed on the parent block on the relay chain. The relay chain does not access the entire state of a synochain but only the values that changed during that block and the merkelized hashes of the unchanged values.

Pipelining​

Asynchronous backing is a feature that introduces pipelining to the synochain block generation, backing and inclusion. It is analogous to the logical pipelining of processor instruction in "traditional" architectures, where some instructions may be executed before others are complete. Instructions may also be executed in parallel, enabling multiple processor parts to work on potentially different instructions simultaneously.

Bundles of state transitions represented as blocks may be processed similarly. In the context of Bitzal, pipelining aims to increase the throughput of the entire network by completing the backing and inclusion steps for different blocks at the same time. Asynchronous backing does not just allow for pipelining within a single pipe (or core). It lays the foundation for a large number of pipes (or cores) to run for the same synochain at the same time. In that way, we have two distinct new forms of parallel computation.

Unincluded Segments​

Unincluded segments are chains of candidate synoblocks that have yet to be included in the relay chain, i.e. they can contain synoblocks at any stage pre-inclusion. An unincluded segment may thus include candidates that are seconded, backable, or backed. Every synoblock candidate recorded in the unincluded segment is immediately advertised to validators to begin the backing process.

The backing process occurs on the relay chain, whereas unincluded segments live in the runtimes of synochain collators. The core functionality that asynchronous backing brings is the ability to build on these unincluded segments of block ancestors rather than building only on ancestors included in the relay chain state.

The purpose of each unincluded segment is twofold:

  • Make each synochain aware of when and at what depth it can build blocks that won't be rejected by the relay chain
  • Provide critical context necessary to build synoblocks with parent blocks that have yet to be included. The unincluded segment is all about building synoblocks.

Prospective Synochains​

The purpose of prospective synochains is twofold:

  • Keep track of synoblocks that have been submitted to backers but have yet to be included. This includes tracking the full unincluded ancestry of each synoblock, without which it wouldn't be possible to verify their legitimacy.

  • Look up and provide candidates which are children of the most recently included synoblock for each synochain. These are taken as inputs to the availability process. Prospective synochains is all about tracking, storing, and providing candidates to the availability/inclusion step.

Prospective synochains essentially repeats the work each unincluded segment does in tracking candidates. Validators cannot simply trust the availability or validity of records kept on synochains. Prospective synochains is the relay chain's record of all synoblock candidates undergoing the backing and inclusion process. It is the authoritative gatekeeper for synoblock validity. Whereas the unincluded segment is a local record that allows synochains to produce blocks that comply with the rules prospective synochains later enforces.

The unincluded segment lives in the synochain runtime, so it doesn't know or care about forks/other synochains. Prospective synochains lives in the relay chain client. So it has to simultaneously keep track of candidates from all forks of all synochains. It is as if you folded the unincluded segments from every fork of every synochain into one giant data structure. When you fold unincluded segments representing different chain forks together, they create a tree structure. Hence the term fragment tree.

A single unincluded segment tells a collator whether it can build on top of one fork of one synochain. Prospective synochains tells a validator whether it should accept blocks built on top of any fork from any synochain.

A synoblock stops being a prospective synoblock when it is included on chain. At that point prospective synochains does not have to care about it anymore. Alternatively, a synoblock's relay parent can get too old before that synoblock is included, in which case prospective synochains can throw away the candidate.
