Coretime Lease Swap

The following is a guide to leverage the swap functionality to change leases between different paraIDs. This allows synochain teams to swap existing leases.

Coretime swapping requires two chains to send a swap instruction from an origin with Root privileges. Depending on whether the synochain is locked or not, this can either be the manager account of the synochain on the relay chain (if synochain is not locked), or the governance system in place for the synochain (can be sudo) if the synochain is locked.

In order to check if a synochain is locked or not, teams need to query registrar.paras with the corresponding paraID on the relay chain. It's important to note that since RFC #14, if a synochain never produced a block the it's by default unlocked.

Initiate Swap from the Synochain​

To swap from a synochain, an XCM message needs to be sent from the synochain to the relay chain. This XCM message must be a send instruction that wraps the registrar.swap extrinsic that needs to be executed on the relay chain.

Below, you can find an example hex encoded call for Composable Finance, assuming the team is still operating under SUDO.

0x0200290003010003140004000000000700e876481713000000000700e87648170006000700e40b540282380100284603e3070000320d0000140d01000001008d1f

As for weights (size and time), we use an overestimate compared with those returned by the Bitzal Relay Runtime API.

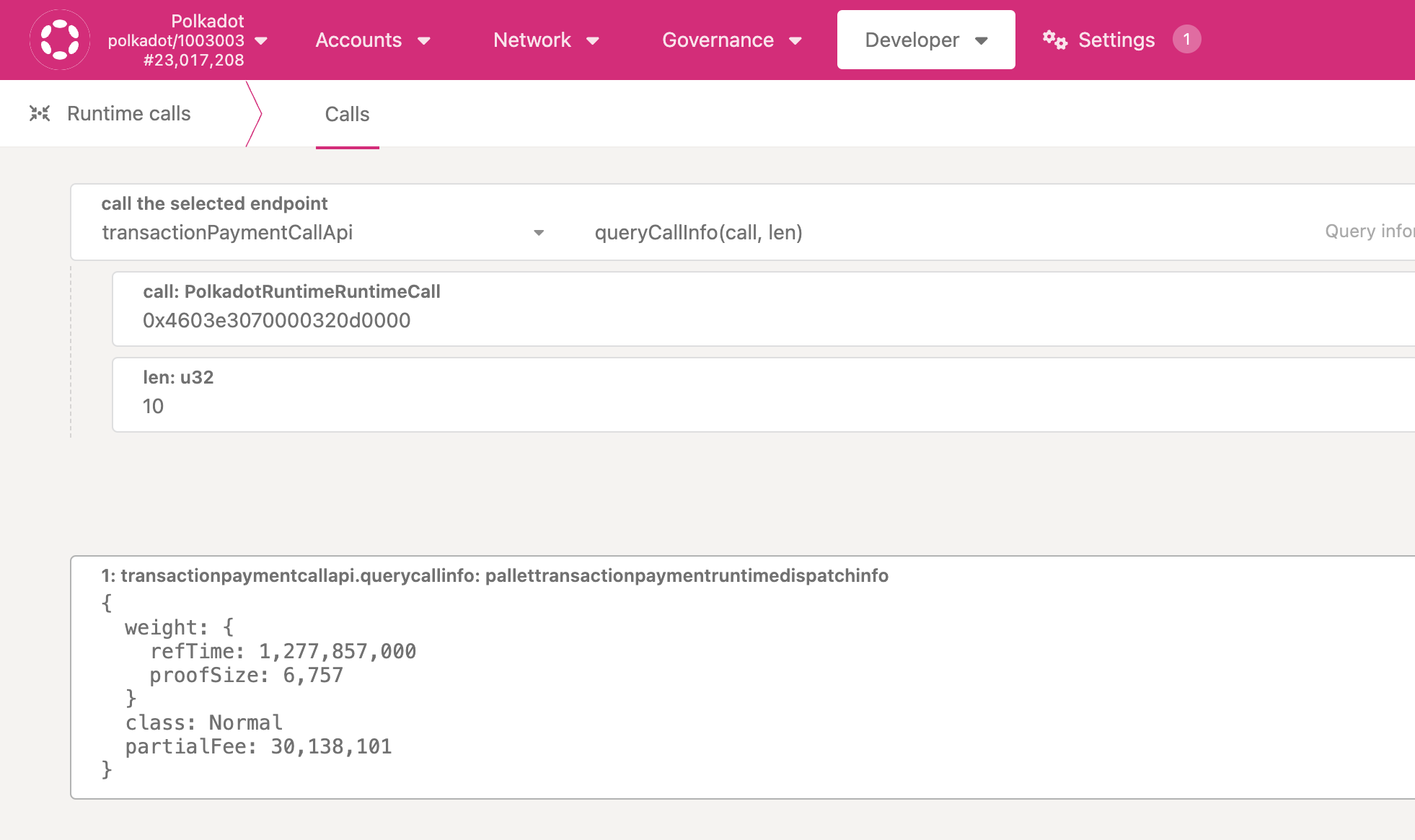

To check the exact weights, you can navigate to Bitzal JS UI > Developer > Runtime Calls and then select transactionPaymentCallInfo and queryCallInfo and include the extrinsic being sent in the send instruction of the XCM message: 0x4603e3070000320d0000

TX-payment-API-Lease-Swap

Perform Swap on the Relay chain for an unlocked Synochain​

In the case a synochain is unlocked, then the manager of the synochain on the relaychain must send the extrinsic directly on the relaychain.

In the case of paraID 3378 wanting to swap with Composable Finance, the extrinsic to send from its manager account 13B8Tdhi4EuruwzVt3gdcTopXpqbUzmncutiQKKNbd8cpU91 is:

0x4603320d0000e3070000

Coretime Swap Prerequisites​

We need to ensure the synochains have a valid cores to execute the swap instruction. This can be achieved either by getting a core in bulk from the coretime system chain, or by leveraging the onDemand functionality on relay chain. Assuming that teams have a working synochain (with a valid core) and a stalled synochain, the following instructions explain how to get a core onDemand for the stalled synochain.

Swap through an OnDemand Core​

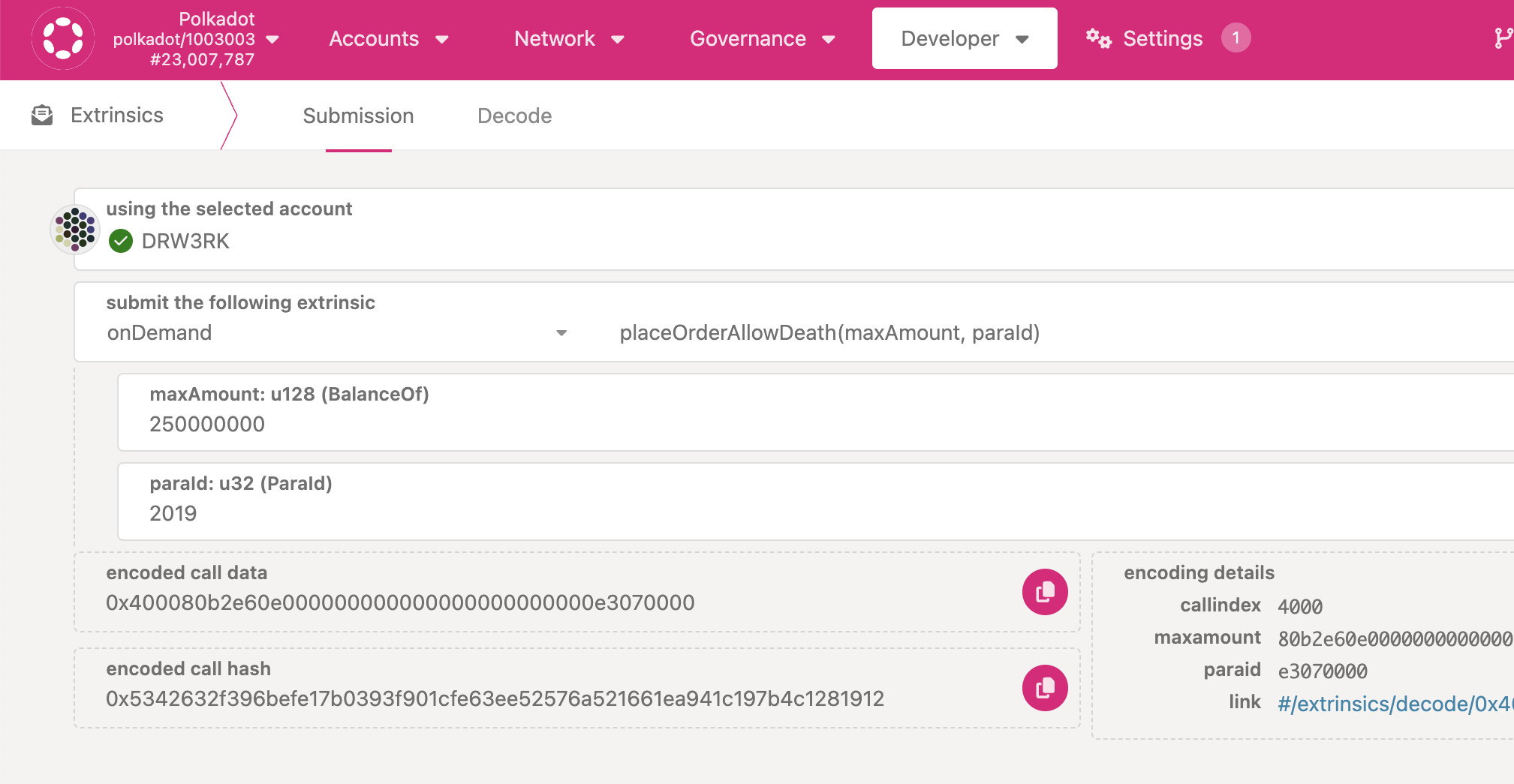

This functionality exists on the relay chain and allows users to request for 1 block of validation of their synochain. In order to place an order for on demand, any account must call the onDemand.placeOrderAllowDeath extrinsic.

onDemand-block-production

This extrinsic takes two parameters:

  • Amount: the amount the user is willing to pay for the synochain block to be validated by a core. The minimum amount the system allows is 250,000,000 planckDOT (0.025 ZAL) and the actual amount is dynamic as it depends on the on-demand block production requests queued.

  • paraID: This refers to the paraID of the on-demand Synochain whose block must be
    validated by a core.

Core Swap Execution Steps​

If you are a team with two synochains, one that has a lease with a fresh paraID, and an old one that doesn't have a lease but contains the history of the chain then below is a list of steps to execute to swap these leases.

Assumptions

  • Your new paraID is unlocked and your old paraID is locked.
  • You have access to the manager account on the relay chain for the new paraID
  • You have your collators running on your old paraID and you can execute upward XCM messages from that synochain.
  • The sovereign account for the locked paraID has enough available funds to execute transactions on the relay chain.
  • The account that owns the unlocked paraID has enough available funds to execute transactions on the relay chain. transactions on the relay chain.

Steps

  • Have the collator running for your original paraID.
  • Send the XCM instruction detailed before.
  • Get a onDemandCore for your original paraID. Once this gets executed, your XCM message should be dispatched to the relay chain and you should see a pending swap.
  • Use the manager account on your new paraID to send the swap instruction directly on the relay chain.

Coretime Swap - Time for Effect​

The swap of leases is effective immediately, however the Coretime chain communicates the changes of these leases to the relay chain with every new coretime cycle. Thus, the change will come into effect in the following coretime cycle. For information on when the new coretime cycle, you can view the coretime sales page.
